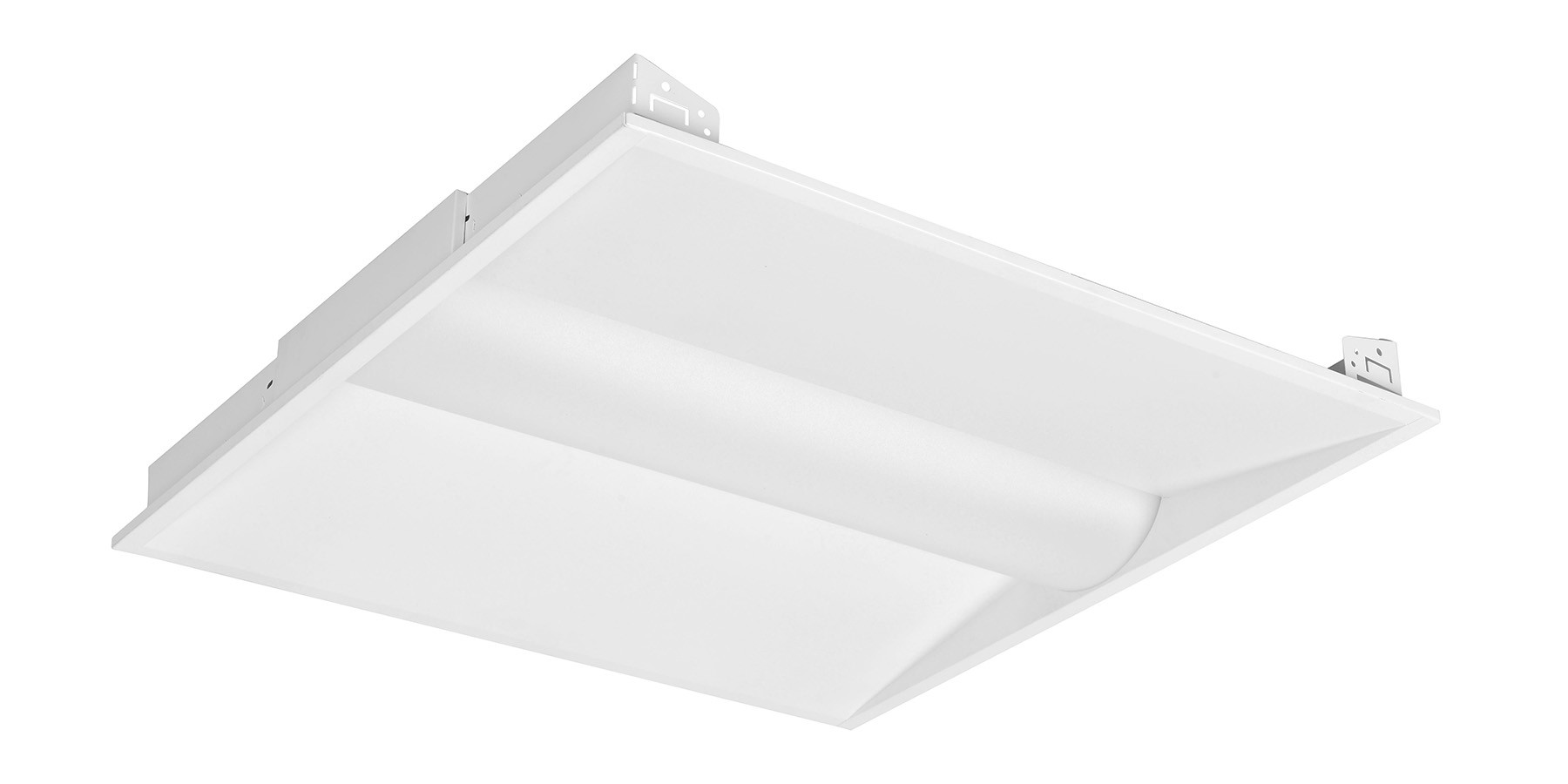

FXTF36SW/2X2/8CCT3/347, NATURALED, 2X2, CENTRE, BASKET, TROFFER, 20/30/36W

NaturaLED
3500K to 5000K

2X2 TROFFER 20/30/36 WATT 4896 LUMENS 35K/40K/50K 120/347V (9595)

FXTF36SW/2X2/8CCT3/347

FXTF36SW/2X2/8CCT3/347 NATURALED 2X2 TROFFER 20/30/36 WATT4896 LUMENS 35K/40K/50K 120/347V (9595)

9595 FXTF36SW-2X2-8CCT3-347.pdf173 kB
Troffer installation guide.pdf1.5 MB

- SKU
  FXTF36SW/2X2/8CCT3/347
- Weight
  6.8 lbs
Alternate To
Acuity 270PUL | Acuity 2628E1
Brand
NaturaLED
Warranty
5 year
Light
- Max Lumen
  4896
- Max Watts
  36W
- LED Color
  35K/40K/50K
- Replaces
  4-T8 or T12
- CRI
  80
- Lumens Range
  4001-5000
- Beam
  120°
Power
- Volts
  120/347V
- Watts Range
  20-36W
- Dimming
  0-10V Dimming
Selectable Levels
- Watts/Lumens Level 1
  20W = 2800Lumens
- Watts/Lumens Level 2
  30W = 4140 Lumens
- Watts/Lumens Level 3
  36W = 4896 Lumens
Dimensions
- Size and Shape
  2x2 Basket
- Length
  23.7"
- Width
  23.7"
- Height
  1.97"
Installation
- Mounting Type
  T-Bar
- Ratings
  Damp Location
Characteristics
- Finish
  White
- Rated Life
  50,000 Hrs
- Operating Temperature
  -20°C to 40°C / -4°F to 104°F
- Standards
  DLC Standard
